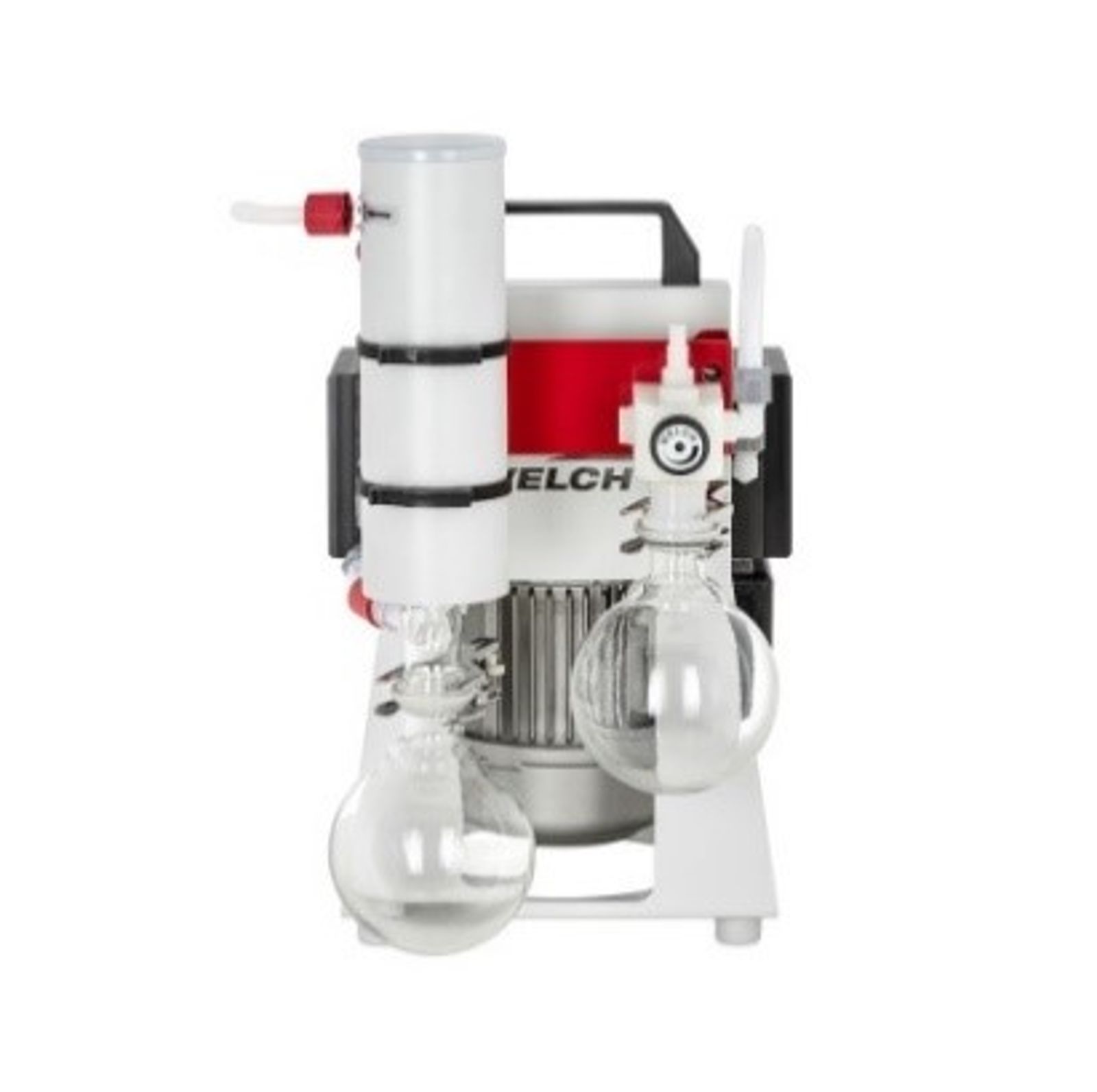

Especially suitable for applications for distillation and evaporation of solvents. It finds its use in laboratories or industry, specifically for pumping aggressive gases and vapours. It consists of dry running, two-stage chemical resistant diaphragm pump with gas ballast valve, suction side condensate separator (round bottom flask 500mL) for collecting liquids and particles. An emission condenser with connections for cooling water supply and return, as well as a 500mL round piston safety valve.
- Suitable for applications for distillation and evaporation of solvents.
- Dry-running, two-stage chemical resistant diaphragm pump.
- Includes inlet separator, exhaust emission condenser, and vacuum regulating valve.
- Simultaneous operation of two processes possible.
- Available in 230V 50/60Hz.
- Free air displacement @60Hz: 1.3 cfm (36.7L/min)
- Free air displacement @50Hz: 2.0 m³/h (33.3L /min)
- Ultimate pressure: 3.75 Torr ( 5.0 mbar)
Welch MXPC 303 Z diaphragm pumps are built to provide consistent and high-quality results, perfect for demanding industrial applications. Explore all diaphragm pumpoptions and learn more today.
Model | MXPC 303 Z | MXPC 603 T |
|---|---|---|
Connections | 8/10 mm | 8/10 mm |
Electrical | 230 V, 50/60 Hz | 230 V, 50/60 Hz |
Final pressure of vacuum pump | ≤5 mbar | ≤1,5 mbar |
Final pressure with gas ballast | ≤8 mbar | ≤3,0 mbar |
Max. flow | 2,0/2,2 m³/h | 4,0/4,4 m³/h |
Max. pressure | 1100 mbar (inlet/exhaust) | 1100 mbar (inlet/exhaust) |
Protection class | IP40 | IP40 |
W×D×H | 250×350×440 mm | 280×350×500 mm |
Weight | 14,7 kg | 25 kg |
