Versatile pump for chemical applications

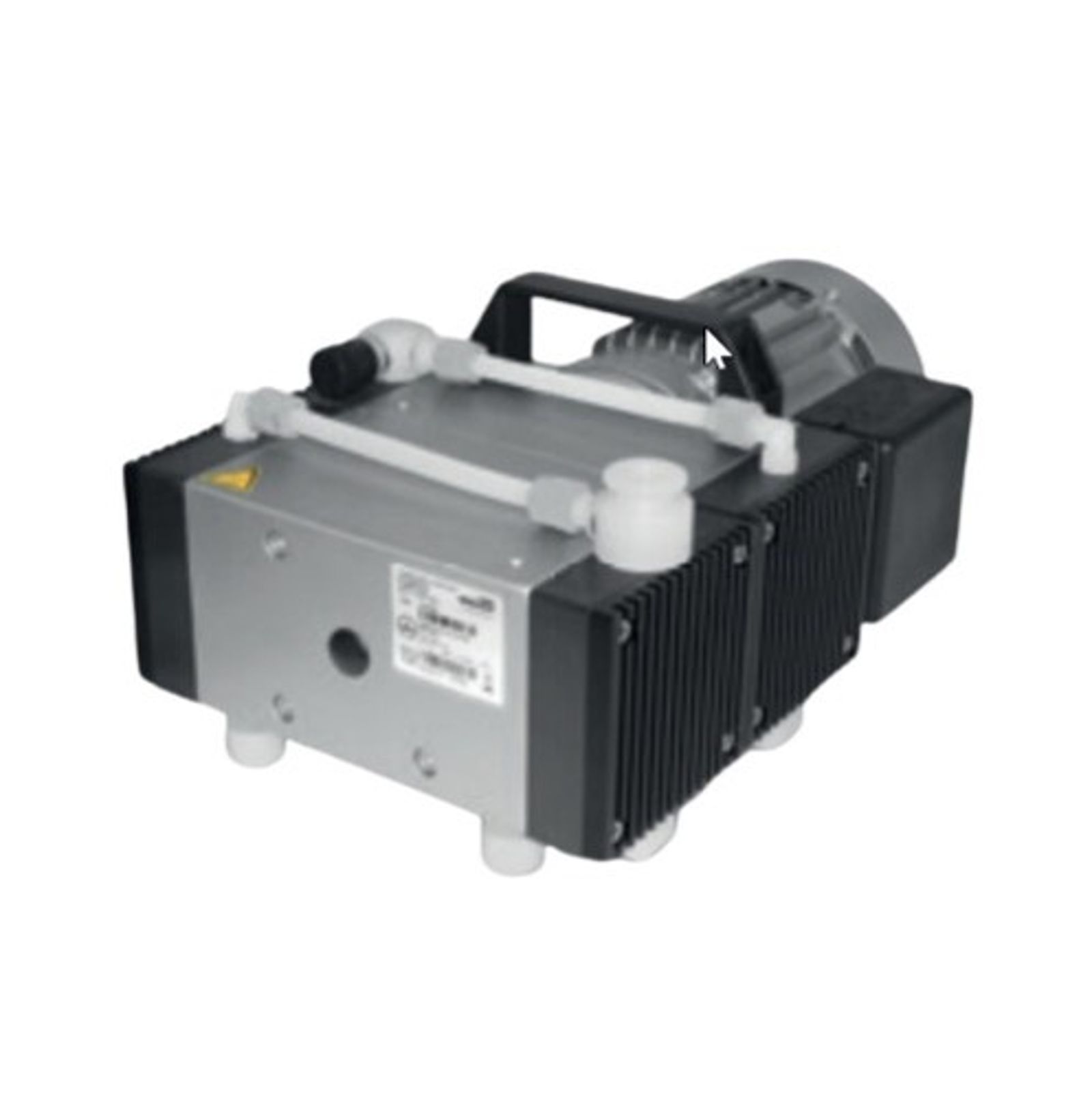

The new Welch MPC 603 T comes from our latest pump generation series. The oil-free design ensures a clean workplace environment and uncontaminated pumping of gases resulting in cleaner samples with no risk of oil back-streaming, as well as low maintenance costs and very easy serviceability – even simpler than previous generations of pump. With a pumping speed of 66 l/min, the MPC 603 T is suitable for larger applications, evaporating solvents with boiling points up to 160 C. Use with Vacuum Controller VCpro60 (600100) for automatic operation.
Improved performance and exceptional reliability
Diaphragm pumps for chemical applications - type MPC - are chemically compatible and resistant to aggressive solvents and acid vapors which are common in laboratories. The diaphragms are made of PTFE. The pump and connection heads are carbon fiber reinforced. Their electrical conductivity prevents electrostatic charging and minimizes the risk of gas mixture igniting inside of the pump.
Your benefits:
• Pump a wide range of solvent and acid vapors
• Perform more work – up to 30% faster process times
Applications:
• Large rotary evaporators
• Concentrators
• Vacuum oven drying/degassing
Scope of delivery:
Chemical duty diaphragm pump, ON/OFF switch, motor overload protection, DN8 hose nozzle adapter, carry handle and vibration isolating feet. Schuko and UK plug leads
