Special characteristics:
- two stage structure of the 4 assigned chemically resistant diaphragm pump
- easy to service structure
- each diaphragm pump with gas ballast valve
- mobile, space-saving, with cover plate
- developed particularly for vacuum networks
Delivery time will be confirmed in the order

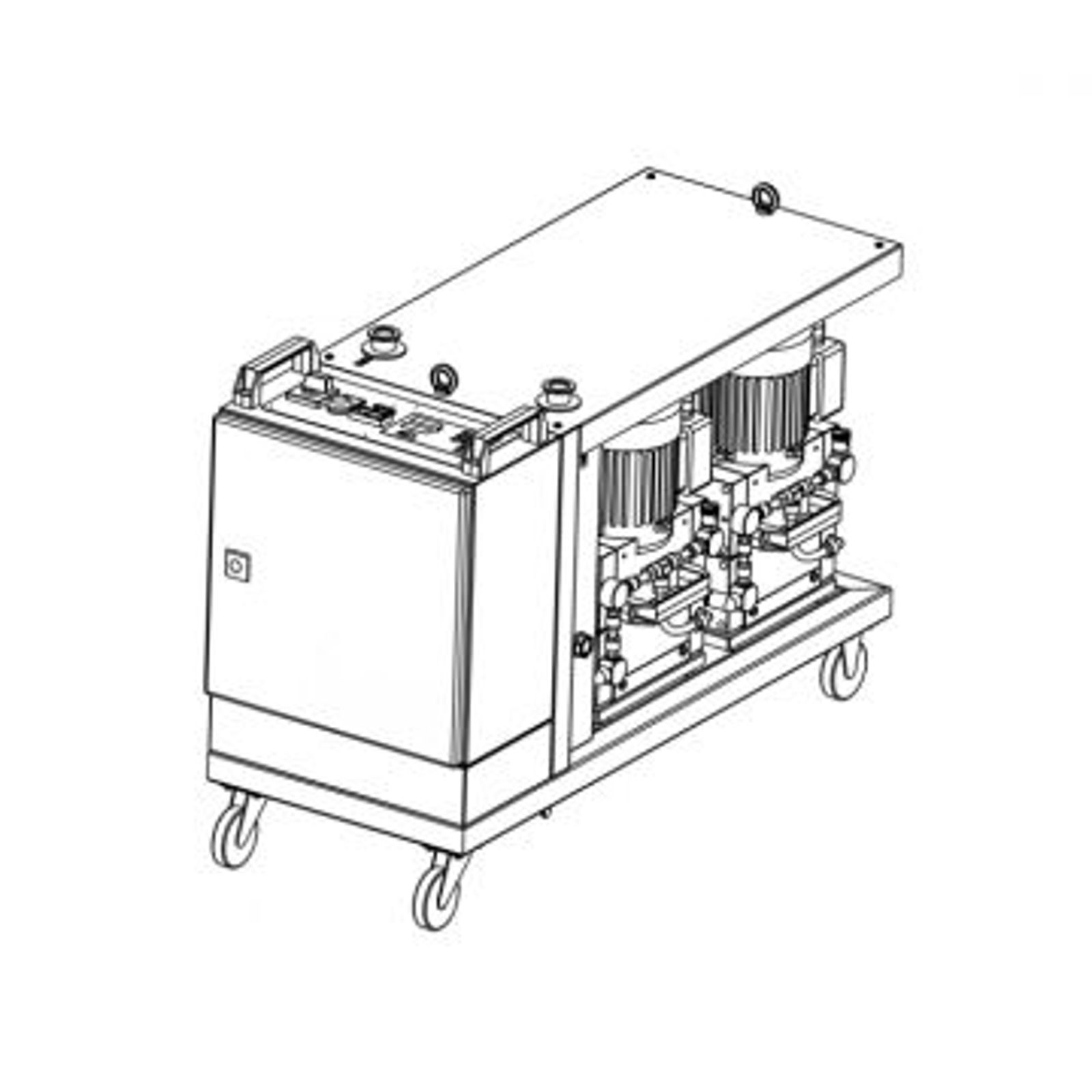

Welch Univac MPKC 3603 Z diaphragm pumps provide reliable vacuum solutions for laboratory and industrial applications. Explore all diaphragm pumps on our category page.Price upon request
Article Number | 112222 |
Max. pumping speed at 50 Hz in m³/h (l/min) | 27 (450) |
Max pumping speed at 60 Hz in m³/h (l/min) | 30 (500) |
Max. pumping speed at 60 Hz in cfm (l/min) | 17.7 (500) |
Ultimate pressure in mbar (Torr) | < 8 (< 6) |
Wired for | 400V, 50/60Hz |
Dimensions (W/D/H) in mm | 380/950/650 |
Weight kg (lbs) | 98 (216.1) |
