Welch Piston Pump WOB-L 2585 offers long-lasting reliability and powerful vacuum capabilities for diverse applications. Visit our WOB-L Piston Pumps category to explore more options.
Delivery time will be confirmed in the order

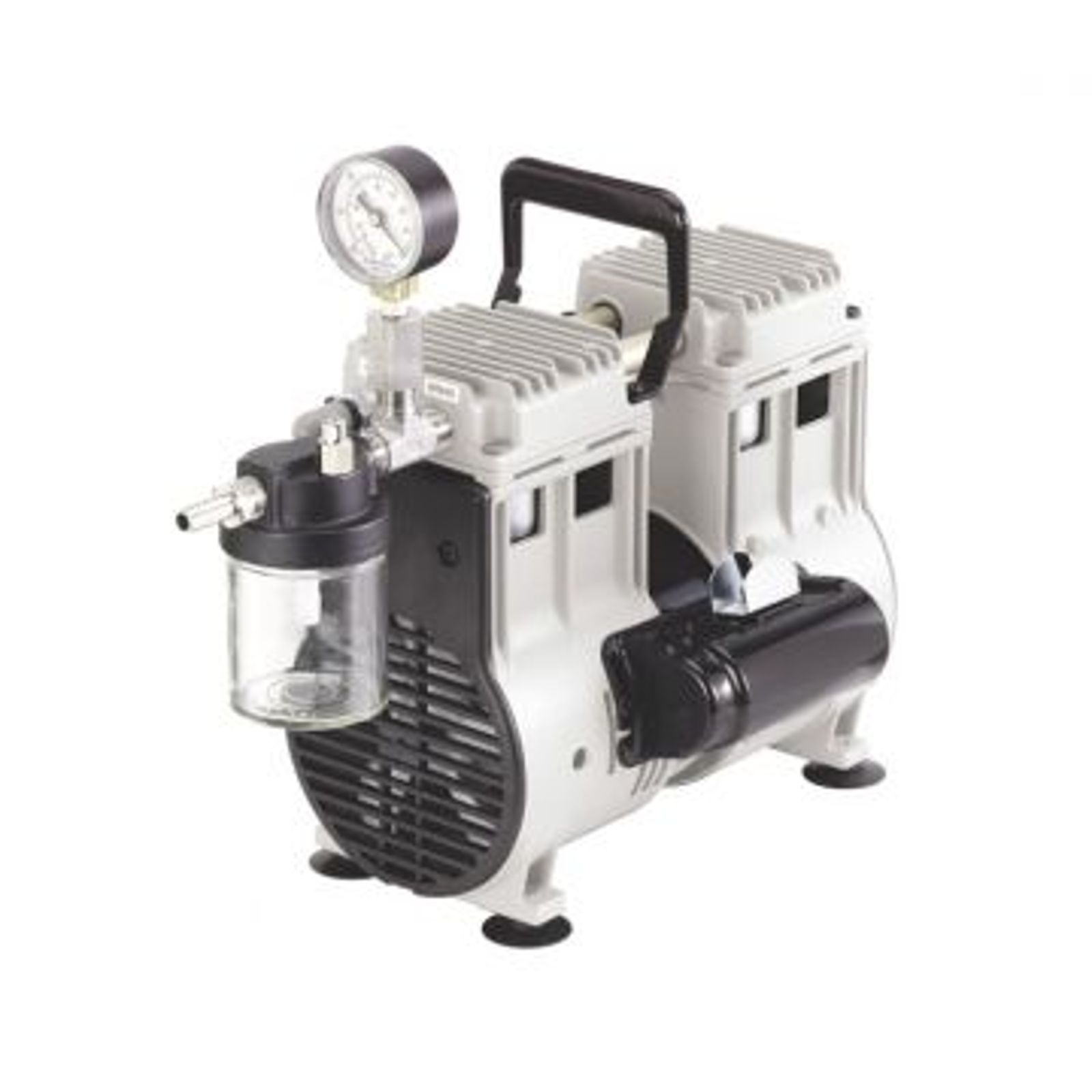

The WOB-L® 2585 dry piston pump is ideal for pumping water vapor, and for applications with vacuum requirements above 80 mbar and a high flow rate (up to 201 l/min). The pump provides continuous, reliable, high flow vacuum. It is light, compact, and its oil-free operation reduces maintenance. Pump comes with inlet liquid trap and mounted vacuum gauge.
Note: pump is not recommended for pumping organic, acidic and basic vapors.
Article Number | U2585C-50 |
|---|---|
Max. pumping speed at 50 Hz in m³/h (l/min) | 10 (166.7) |
Max pumping speed at 60 Hz in m³/h (l/min) | 12.1 (201.7) |
Max. pumping speed at 60 Hz in cfm (l/min) | 7.1 (201.7) |
Ultimate pressure in mbar (Torr) | 80 |
Wired for | 230V, 50/60Hz |
Dimensions (W/D/H) in mm | 432/191/305 |
Weight kg (lbs) | 11.2 (24.7) |
