Item# 2567B-50 2567C-02
The Welch Piston Pump WOB-L 2567 delivers consistent vacuum performance with advanced features, perfect for laboratory use. Discover more WOB-L Piston Pumps in our dedicated category.
Delivery time will be confirmed in the order

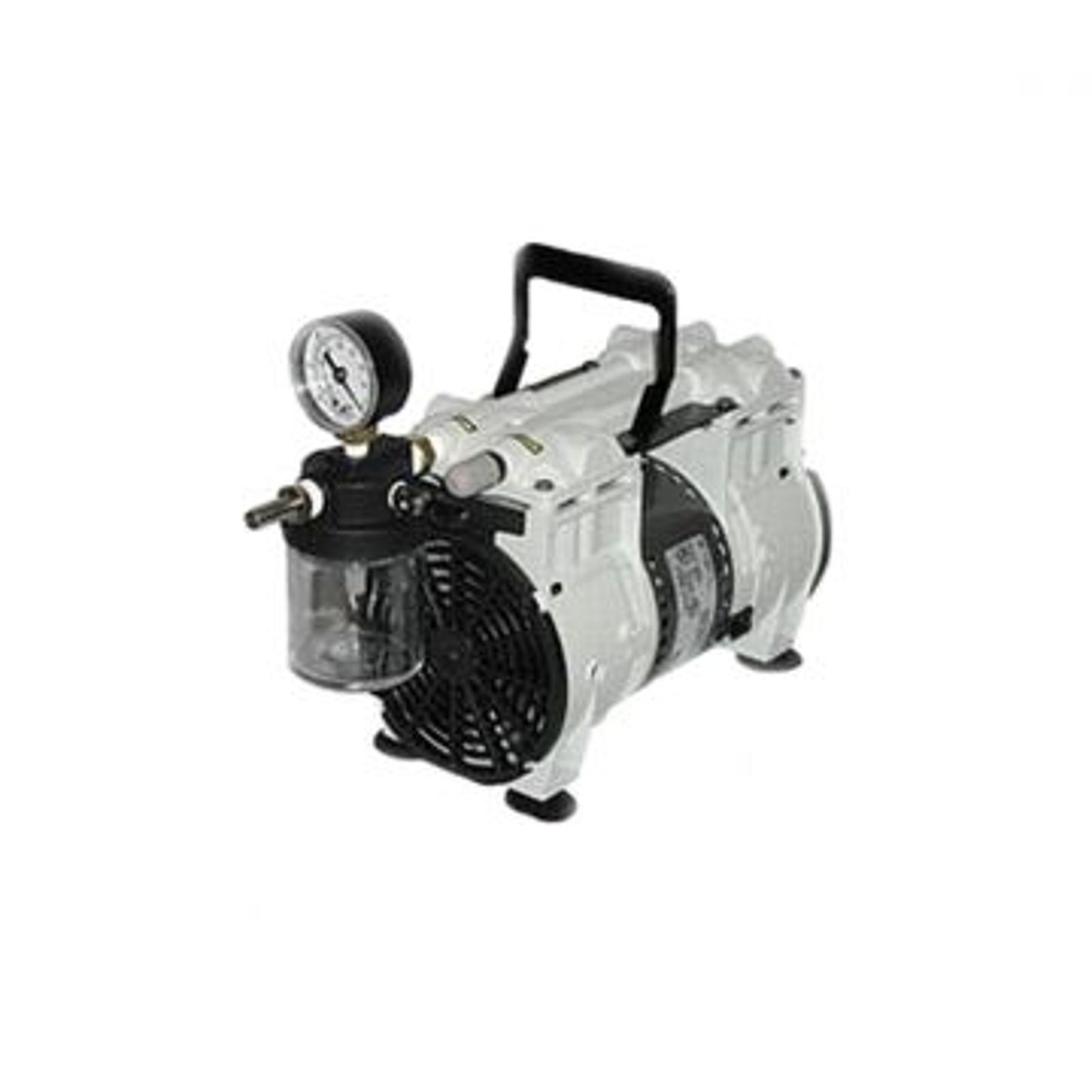

The WOB-L® 2567 dry piston pump is ideal for pumping water vapor, and for filtration and vacuum ovens with vacuum requirements above 80 mbar. The pump provides continuous, reliable, high flow vacuum. It is light, compact, and its oil-free operation reduces maintenance. Pump comes with inlet liquid trap, mounted vacuum gauge and vacuum regulator.
Note: pump is not recommended for pumping organic, acidic and basic vapors.
Article Number | U2567C-50 |
Max. pumping speed at 50 Hz in m³/h (l/min) | 4.9 (81.7) |
Max pumping speed at 60 Hz in m³/h (l/min) | 6 (100) |
Max. pumping speed at 60 Hz in cfm (l/min) | 3.5 (100) |
Ultimate pressure in mbar (Torr) | 80 |
Wired for | 230V, 50Hz |
Dimensions (W/D/H) in mm | 381/254/254 |
Weight kg (lbs) | 7.5 (16.5) |
* Without handle
