Piston PumpsWOB-L® 2534

Item# 2534B-01

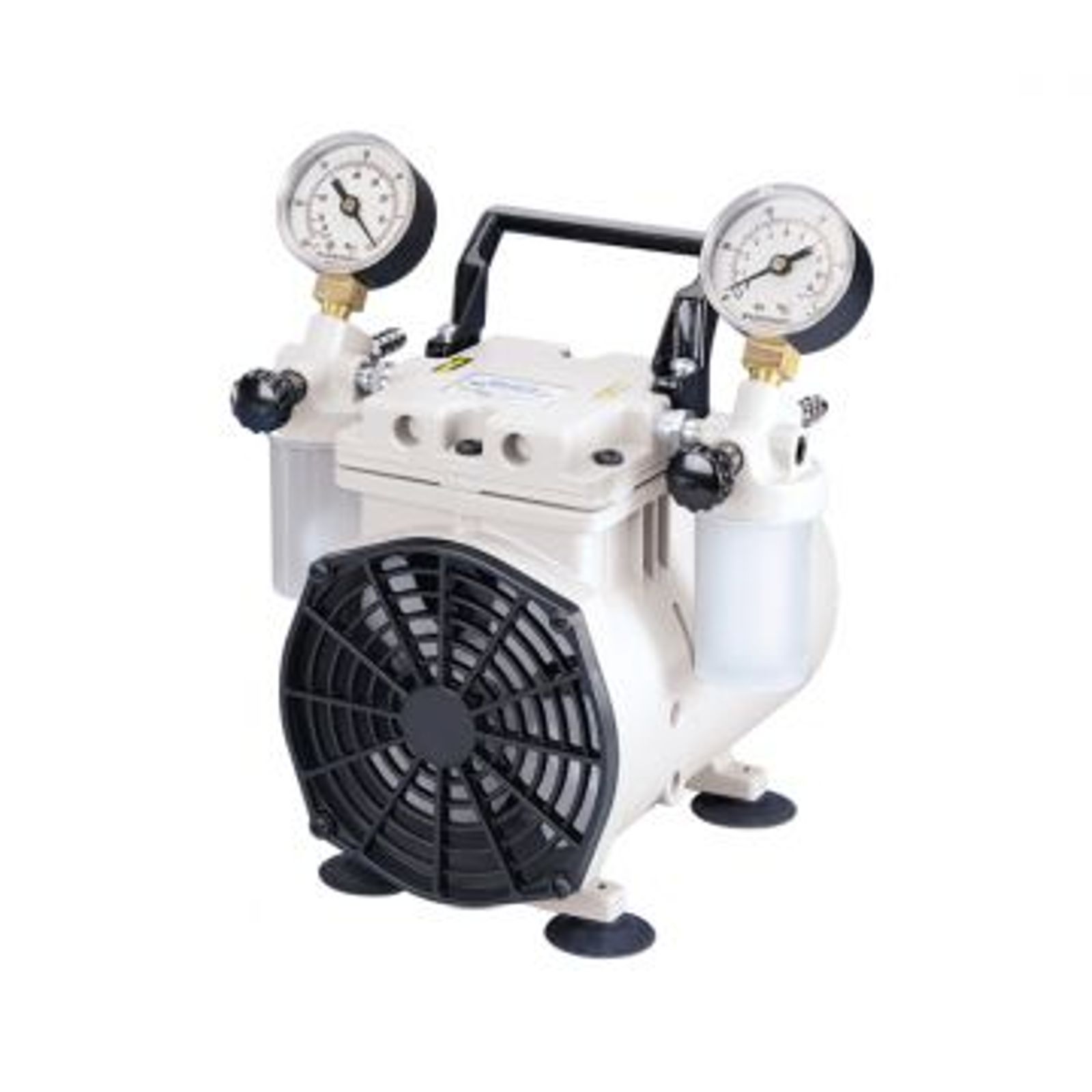

Welch Piston Pump WOB-L 2534 provides compact and efficient vacuum technology, perfect for laboratory and industrial use. Explore the full range of WOB-L Piston Pumps today.

Delivery time will be confirmed in the order

WOB-L® 2534 dry piston pumps are a reliable partners for physical applications, notably with aqueous solutions. Being a vacuum pump and compressor, they can be used for a wide variety of applications such as filtration, gas sampling, vacuum drying, desiccation and automation technology. The integrated vacuum and pressure gauges and regulators allow the pressure to be continuously monitored and adjusted. The pump is protected by an inlet liquid trap with automatic flow stop.

For use with dry or aqueous vapor applications only.

Advantages:

  • oil free
  • easy to clean
  • easy maintenance
  • easy handling and control features
  • robust construction

Article Number

U2534C-02



Max. pumping speed at 50 Hz in m³/h (l/min)

1.7 (28.3)



Ultimate pressure in mbar (Torr)

93



Wired for

230V, 50Hz



Dimensions (W/D/H) in mm

206/224/254



Weight kg (lbs)

5.3 (11.7)



  • Hydrophobic in-line filter and hose DN 6 / DN 8 - 404008
  • Vacuum regulator for WOB-L® 2522, 2534, 2546 - U2522K-05
  • Pressure regulator for WOB-L® 2522, 2534, 2546 - U2522K-06
  • Ersatzbehälter aus Kunststoff für WOB-L® 2522, 2534, 2546 - U1415C
  • Pressure Filtration -Kit - 404009
  • Seal Kit for WOB-L® 2534, 2546 - U2546K-04
  • Maintenance Kit for WOB-L® 2546 - U2546K-03
