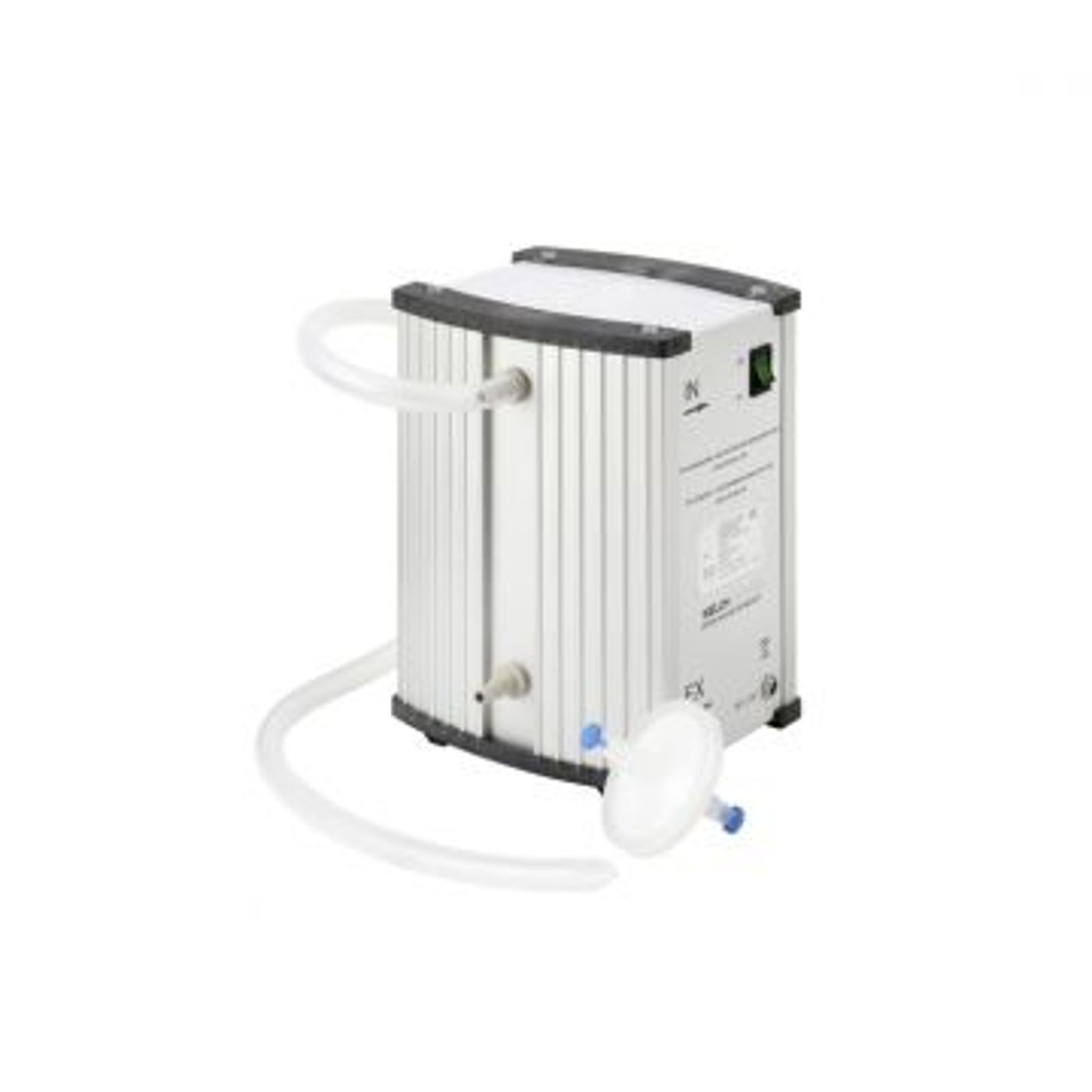

Welch Standard Duty Diaphragm Pump MP 065 E with Inline Filter Kit offers reliable operation with added filtration for enhanced efficiency. Visit our diaphragm pumps category page to explore more options.Price upon request
Article Number | 411011-01 |
Number of heads / stages | 2/1' |
Max. pumping speed at 50 Hz in m³/h (l/min) | 0.7 (11.6) |
Ultimate pressure in mbar (Torr) | < 100 |
Wired for | 90 to 260V AC /18V DC |
Intake connection | Hose nozzle DN 6 |
Exhaust connection | Hose nozzle DN 6, w/exhaust silencer (removable) |
Sound level (dB) | < 45 |
Dimensions (W/D/H) in mm | 144/127/196 |
Motor voltage | 18 VDC |
Operating temperature in °C | 10 to 60 °C |
Weight kg (lbs) | 2.3 (5.1) |
* Without handle
MP 105 E - pumping speed 50/60 Hz 8/9.1 l/min ✓ motor power 68 W ✓ oil-free ✓ wired for 115/230V , 50/60Hz
MP 055 Z - pumping speed 50/60 Hz 8/9.2 l/min ✓ motor power 68 W ✓ oil-free ✓ compact ✓ heads 2 / stages 2
