Special characteristics:
- two stage structure of the 6 assigned chemically resistant diaphragm pump
- easy to service structure
- each diaphragm pump with gas ballast valve
- mobile, space-saving, with cover plate
- developed particularly for vacuum networks
Delivery time will be confirmed in the order

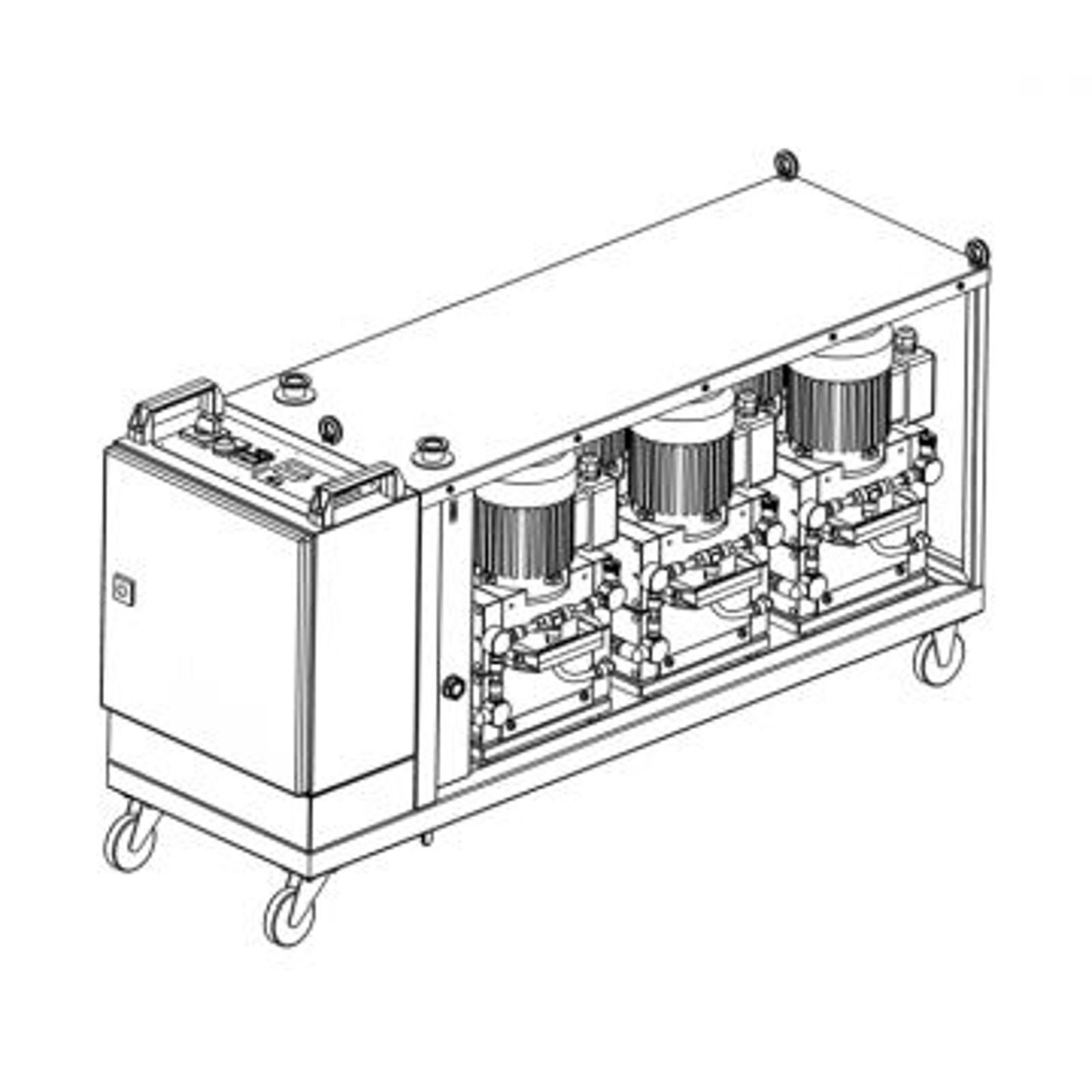

The Welch Univac MPKC 5403 Z diaphragm pump combines precision engineering with reliable performance for diverse vacuum applications. Discover more diaphragm pumps on our product category page.Price upon request
Article Number | 112226 |
|
Max. pumping speed at 50 Hz in m³/h (l/min) | 40 (666.7) |
|
Max pumping speed at 60 Hz in m³/h (l/min) | 45 (750) |
|
Max. pumping speed at 60 Hz in cfm (l/min) | 26.5 (750) |
|
Ultimate pressure in mbar (Torr) | < 8 |
|
Wired for | 400V, 50/60Hz |
|
Dimensions (W/D/H) in mm | 380/1235/650 |
|
Weight kg (lbs) | 140 (308.6) |
|
