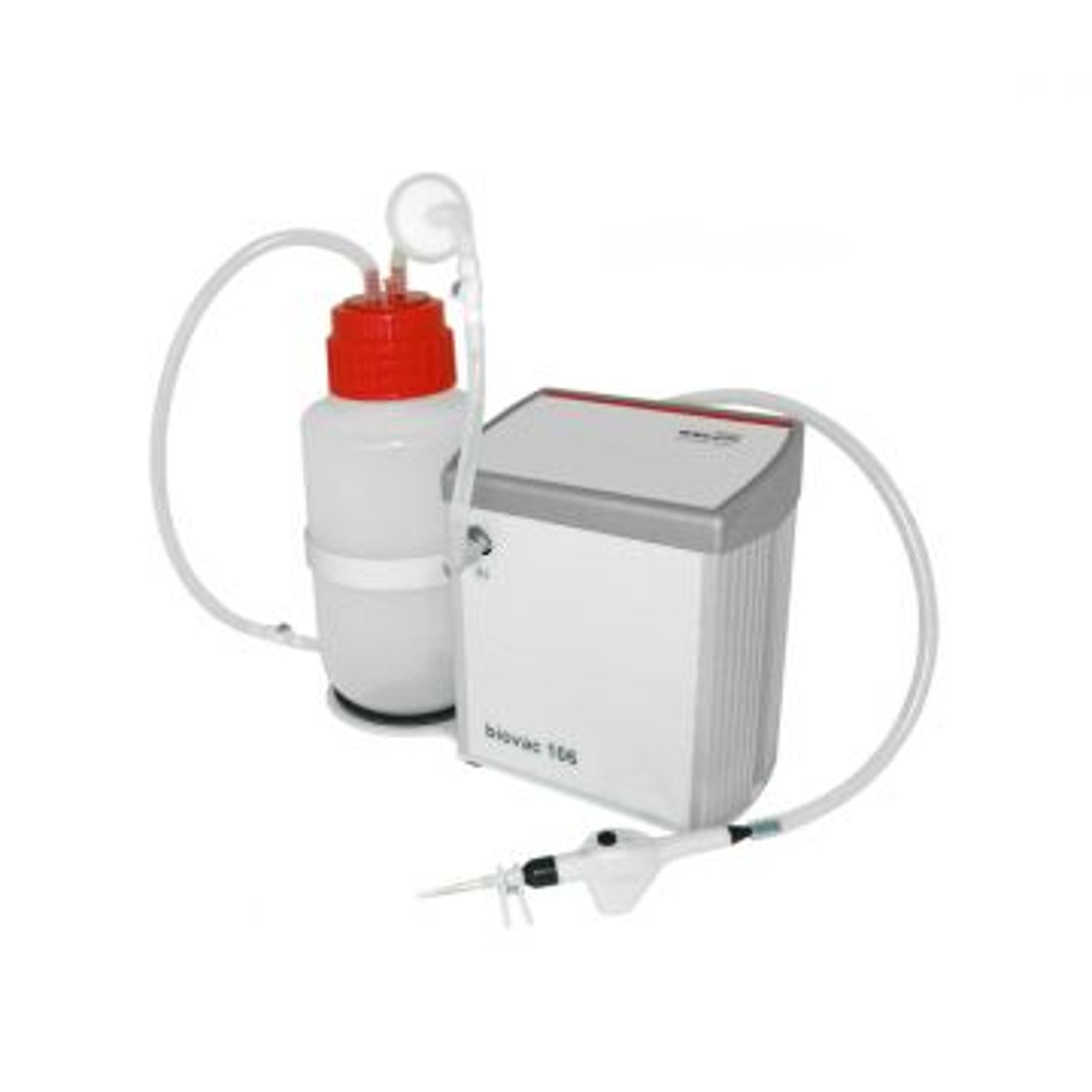

BioVac 106, 4L System

•Autoclavable 4-liter polypropylene collection bottle

•Comes with HandVac pipettor

•Automatic flow stop when receiver full

•Has a 0.22 micron hydrophobic biofilter

•Available in 115/230V 50/60Hz

Free air displacement @60Hz: 0.6 cfm (16 L/min)

Free air displacement @50Hz: 0.72 m3/h (12 L/min)

•Ultimate pressure: 75 Torr (100 mbar)

With the Biovac 106, fluids can be removed easily and very precisely from slides, petri dishes, cell culture containers, etc., by using different pipettes or glass tips and Pasteur pipettes which can be easily
connected to the handvac pipettor. The Biovac 106 is switched on and off directly at the device or the optionally available foot switch.

A float valve stops the bottle from being overfilled and protects the pump. An in-line hydrophobic filter gives additional protection.

A wide range of accessories allows the user to customize the Biovac 106 depending on their specific needs.

Article Number

112037-04

Max. pumping speed at 50 Hz in m³/h (l/min)

0.72 (12)

Max pumping speed at 60 Hz in m³/h (l/min)

0.96 (16)

Ultimate pressure in mbar (Torr)

100

Wired for

115/230V, 50/60Hz

Sound level (dB)

45

Dimensions (W/D/H) in mm

357/145/277

Weight kg (lbs)

8 (17.6)

*Without handle

  • Connection cable black - with plug CH, Cable length 1.5 m - 825877
  • Service Kit for MP/MPC 095 Z, 110 E, biovac 106 - 402045

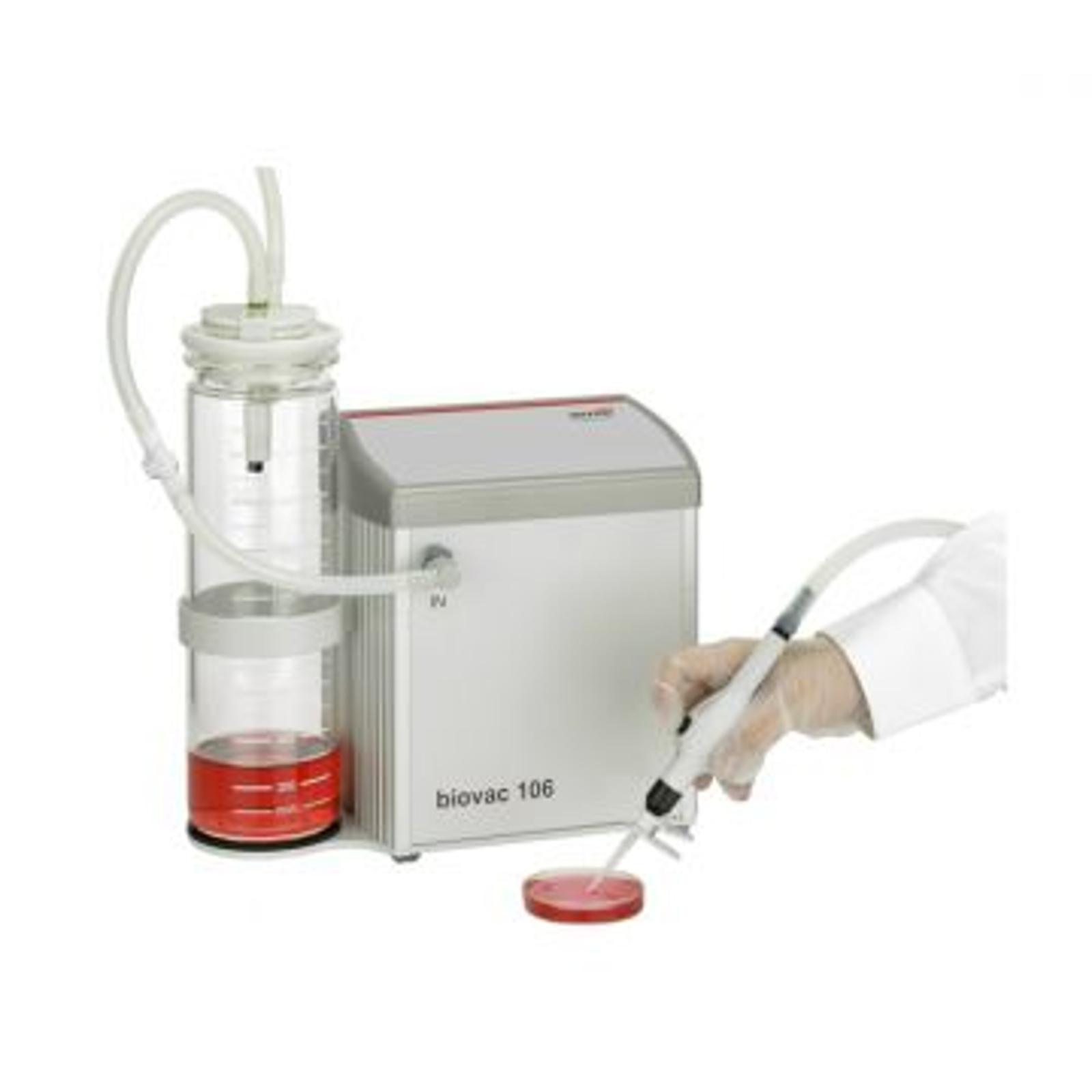

  • Spare Jar, cap and hose for biovac 106, 2L, glass - 112523-1
  • Spare Jar for biovac 106, 2L - 828840
  • Spare Lid for biovac 106 - 828840-1
  • Seal for lid for secretion glass jar - 828840-4
  • Filter 1 µm for secretion glass jar - 828840-2
  • Hydrophobic Particulate, In-line Filter, DN 8 - 112555-04
  • On/Off Foot Switch for biovac 106, 230V - 112529
