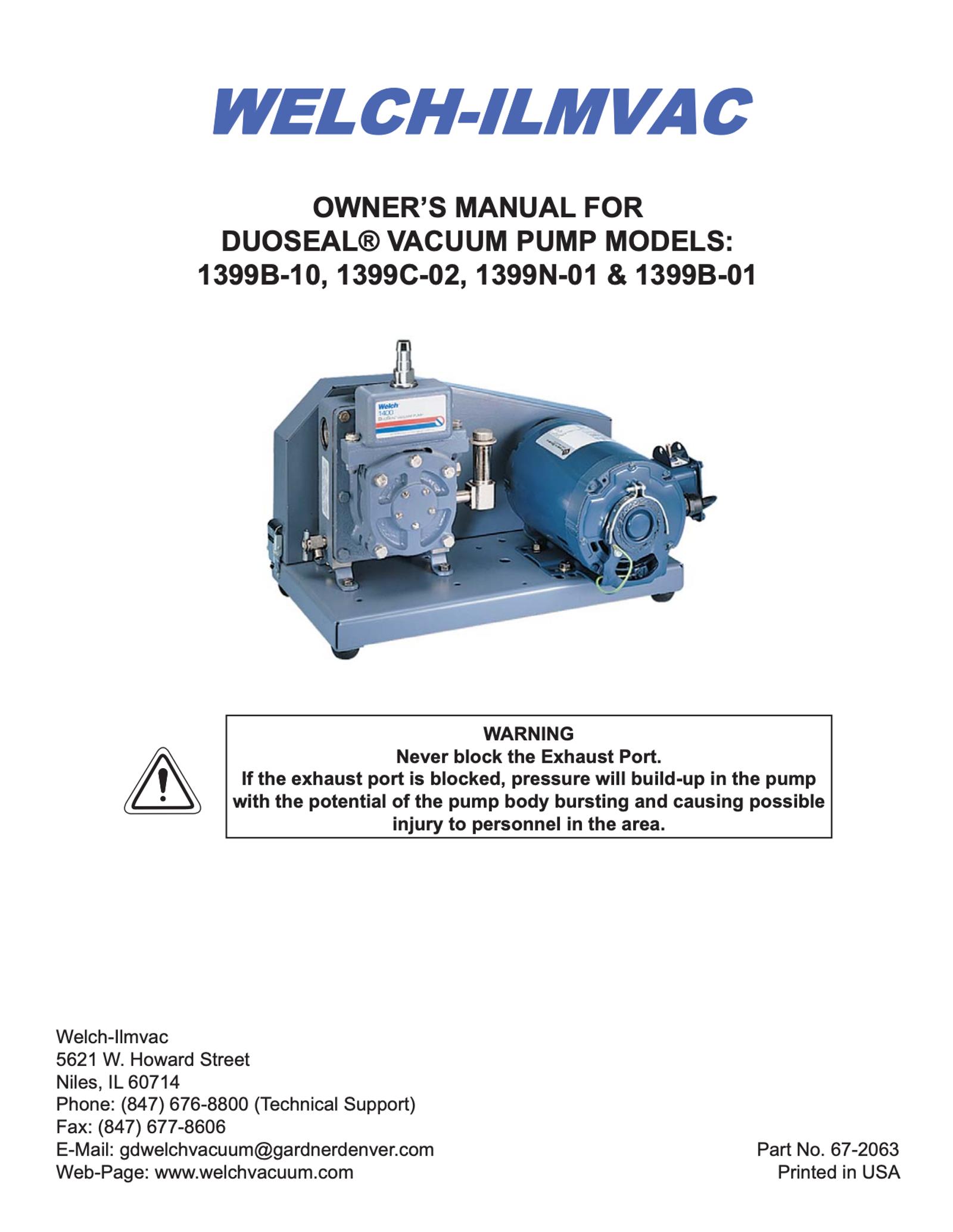

For detailed specifications, maintenance procedures, troubleshooting steps, and exploded diagrams, download the official Welch DuoSeal Model 1399 manual.
REACH OUT TO US
Built for Demanding Lab and Industrial Use
The Welch DuoSeal Model 1399 is a belt-driven, oil-sealed rotary vane vacuum pump designed for continuous operation in environments where reliability and low maintenance matter. With a pumping speed of 140 L/min and an ultimate pressure of 1 x 10⁻⁴ Torr, it’s engineered for high-throughput, high-reliability applications like vacuum ovens, freeze drying, and glove boxes.
This model is part of Welch’s long-standing DuoSeal line, known for its rugged construction and long service life. The 1399 is oil-lubricated and features a two-stage design that delivers deep vacuum levels while maintaining quiet operation and minimal vibration.
Key Features
- Pumping Speed: 140 L/min (5.0 CFM)
- Ultimate Vacuum: 1 x 10⁻⁴ Torr
- Motor: 1/2 HP, TEFC, 115/230V, 60Hz
- Oil Capacity: 1.25 quarts
- Noise Level: ~52 dB(A)
- Weight: 85 lbs (38.5 kg)
- Inlet/Outlet: 3/4" NPT
Common Use Cases
- Freeze dryers
- Vacuum ovens
- Glove boxes
- Vacuum manifolds
- Laboratory filtration systems
FAQs
Use Welch DuoSeal vacuum pump oil or equivalent high-grade mineral oil with low vapor pressure. Refer to the manual for viscosity and compatibility details.
